Workshop & Facilities

Uni-Vessel Engineering fabrication workshop is located in Jalan Tasek, Simpang Ampat, Penang, Malaysia.

Workshop(8 Bays)    :    21,800 square meter

Open Yard                :    23,500 square meter

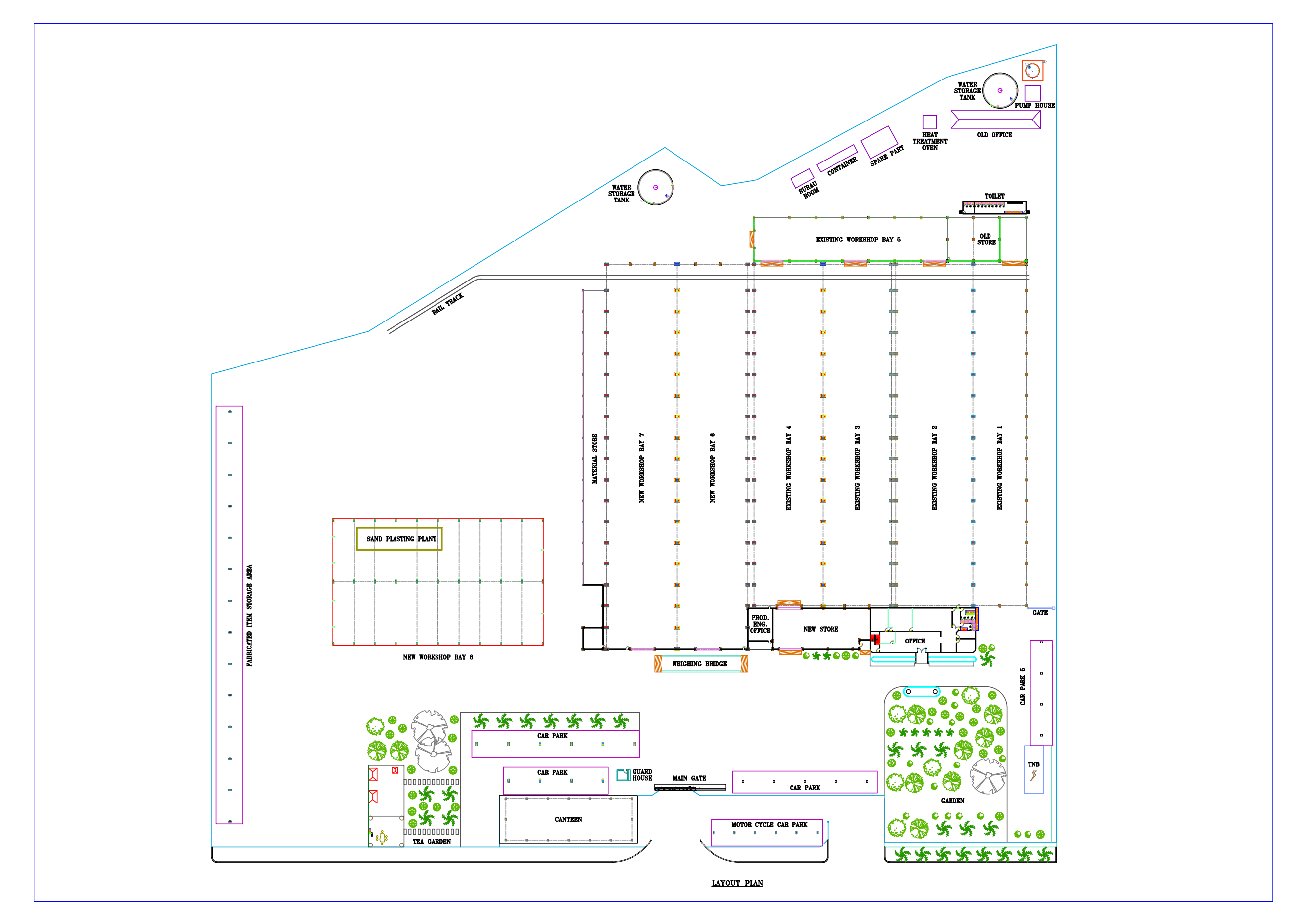

Workshop & Facilities Layout



Workshop Facility Qty Specification
Beveling Machine 5 Portable
Chain Block 3 Capacity: 2 tons
Conventional Welding Turning - Roll 8 Capacity: 4@ 50 tons, 1@ 60 tons, 2@ 30 tons, 1@ 100 tons
CNC Lathe Machine 4 Distance Between Center 8000mm
Swing Over Bed 760mm
Dish End Machine 4 Thickness 3-20mm, Dia 900mm - 4000mm
Drilling Machine 2 /
Forklift 4 1@ 4 tons, 3@ 5 tons
Mobile Crane 3 1@ 20 tons, 1@ 25 tons, 1@ 50 tons
Hydraulic Shearing Machine 2 Capacity: 10' x 10mm
Hydraulic Guillotine 1 Capacity: 10' x 3mm
Horizontal Borer 1 /
Hydraulic Drill 3 Degree of Freedom -- 3
Heater 1 Max Temperature 1300⁰C
Lathe Machine 7 Max Length Workpiece 7000mm
Magnetic - Stand Drilling Machines 13 /
Metal Inert Gas (MIG) Welding Machine 23 Duty Cycle 60% & 100%
Overhead Crane 24 6@ 25 tons, 6@ 5 tons, 8@ 7.5 tons, 3@ 15 tons, 1@ 12.5 tons
Precision Vertical Slotter 1 /
Portable Shape Cutting Machine 5 Cutting Thickness 3 - 100mm
Pipe Bending 1 20mm ~ 150mm
Pipe Screwer 3 Threading 1"
Plasma Cutting Machine 6 /
Positioner 3 Degree of Freedom --2
Hydraulic Press Machine 11 Up to 200 tons
Radial Drill 2 /
Rolling Machine 9 Capacity W = 3000mm, L = 11000mm
Sharp Cutter 4 Round Bar, Flat Plate, Angle Bar, I - Beam
Saw Blade Machine 4 /
Submerged Arc Welding 6 Duty Cycle 100%
Sharping Machine 3 /
Rotary Screw Compressor 2 1@ 25 HP, 1@ 50 HP
Tangential Pipe Screwer 1 Bolts & Tubes, Up to 2"
Twist Drill Grinder 1 Point Grinding 10-100mm (Dia)
Threading Machine 1 Flexible - Capacity : M33
Tungsten Inert Gas (TIG) Welding Machine 4 Rated Duty Cycle 40% - 60%
Universal Metal Worker 4 Beading, Joggling, Louvring, Doming, Flanging
Vertical Milling Machine 2 /
Vertical Boring Machine 2 Up to 3500mm Diameter
Shield Metal Arc Welding Machine (SMAW) 130 /
Water Jet Cutting Machine 1 Max Thickness 150mm/6"
(Stainless Steel, Steel, Marble, Titanium, Aluminium, Ceramic)
Robotic Welding Machine 1 /
Semi Auto Gas Cutting Machine 10 Max. Cutting Thickness 125mm
Single Column Type Vertical Boring & Turning Mill 1 Max Turning Diameter 4500mm, Max Swing 4500mm
CNC Vertical Milling Machine 1 1020mm x 500mm x 500mm

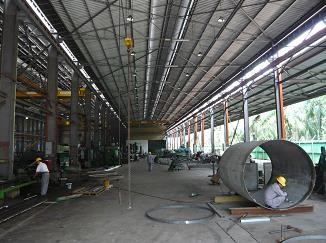

WORKSHOP 1

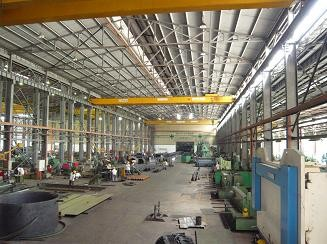

WORKSHOP 2

WORKSHOP 3

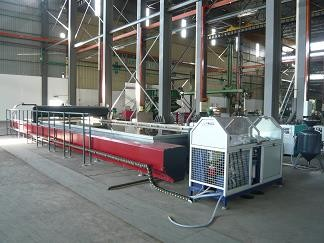

WATER JET CUTTER

Vertical Boring & Turning Mill Manufacturer: O-M Ltd (Japan)

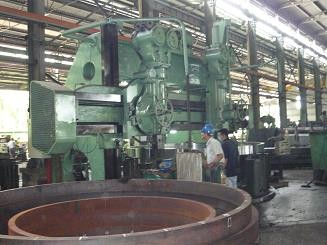

RING MACHINING

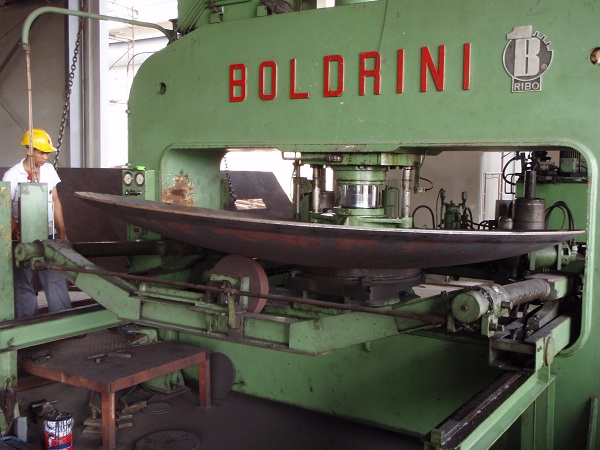

DISH END FORMING MACHINE

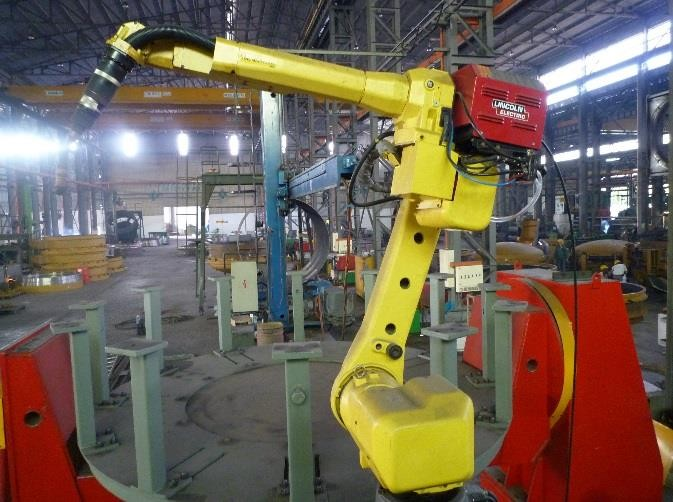

ROBOTIC ARC WELDER

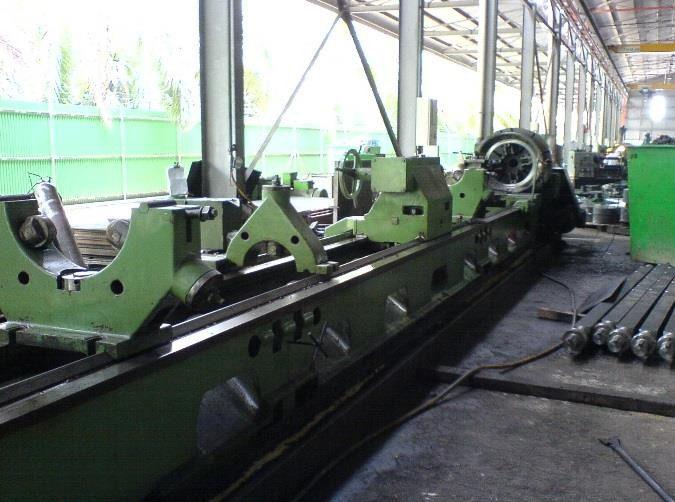

STRAIGHT BED CENTRE LATHE

WORKSHOP 4

VERTICAL BORING MACHINE

LATHE MACHINE

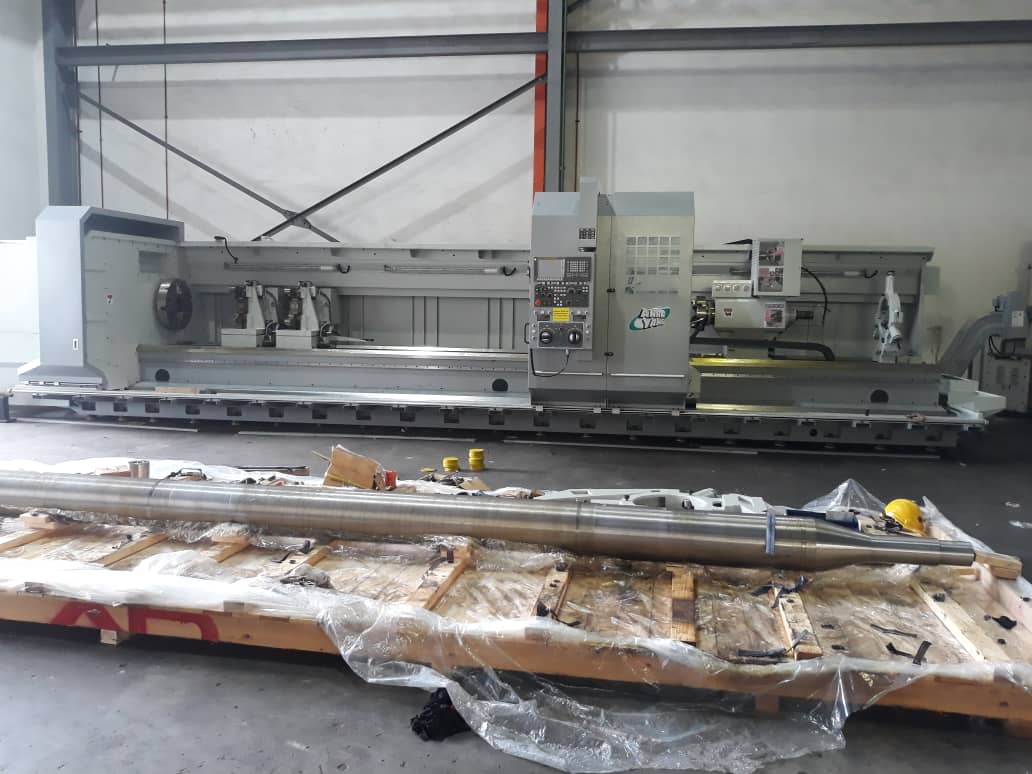

New Machine - CNC Lathe Machine Specification

  • Machine Capacity

    Distance between centers:     8000mm

    Swing over bed:                       760mm

    Swing over cross slide:            410mm

    Bed width:                                765mm

    Spindle speed:                         L: 40-130rpm, M: 130-400rpm, H: 400-1200rpm

    Cross Travel (x Axis):                380mm

    Longitudinal (z Axis):                DBC 350mm

    Cutting feed speed:                 0.001-500mm / rev
